产品概述：

全自动塑料气压热成型机，是集机、电、气一体化设计，温度控制采用PID控制，加热、成型在同一工位一次性完成，自动送片，自动整板切断。具有操作简单，耗电省、速度快等特点，用于各种热塑性片材的二次热成型加工。

应用范围：

主要适用于BOPS、PVC、HIPS、PP、PET等各种热塑性塑料片材，广泛用于食品、医药等的内外包装及其它日用塑料制品的生
产。如：食品盒、蛋糕盒、快餐盒、糕点托盘、超市托盘、医药针剂托盘、口服液托盘等。

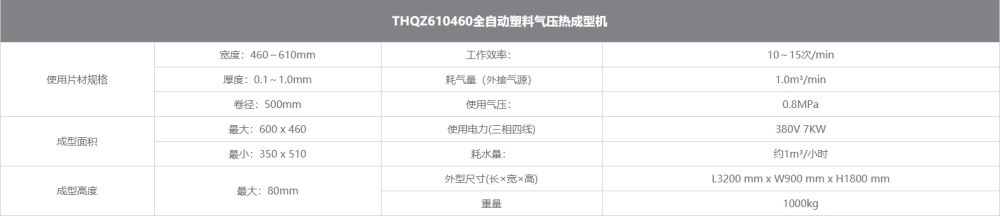

以THQZ610460全自动塑料气压热成型机为例，它的性能和优势分别是：

一、耗电量小：一小时单机运行3KW，加上冲床、空压机整个工艺流程只需用电7KW。
二、省边角料：边角料每边为5mm，BOPS片材、PVC一级新片、投入1000kg能做到成品900kg。
三、省人工：一人便可操作整个生产工艺流程，连冲带包装，无须操机师傅。
四、机器性能稳定：不同于传统高速机的电脑触屏，程序复杂，维修复杂，机器运行故障率小，无需请师傅维修管理，熟练工人可自行调试更换模具 根据产品的不同材料，不同厚度调配时间继电器和温控仪。
五、模具：模具价格合理，采用进口铝材制成。永久不变型。更换模具操作简便。
六、进口配件：机器的心脏部分----电磁阀，品牌：CKD SMC进口日本。给机器的性能增加稳定性。
七、产量：BOPS片材24小时产量500kg（月饼盒）PVC片材24小时产量1000kg（药托针剂托2ml）

Product Description:

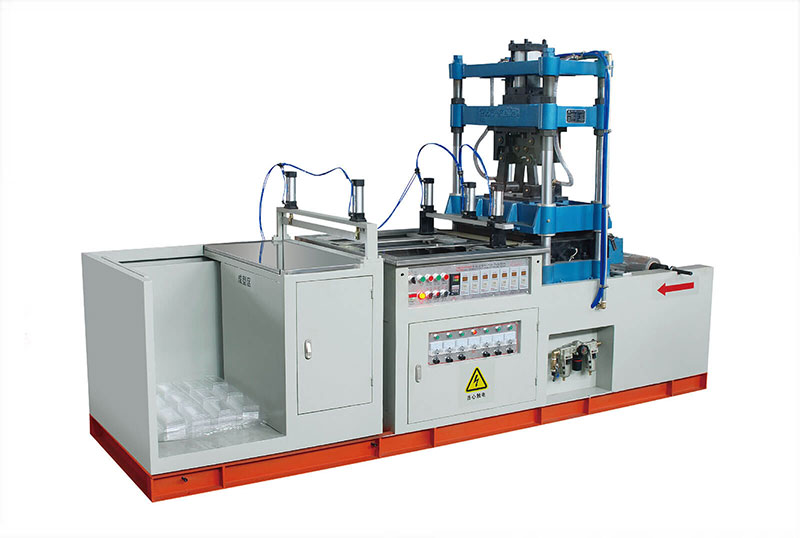

The automatic plastic air pressure thermoforming machine is an integrated design of machine, electricity and gas. The temperature control adopts PID control. The heating and forming are completed in the same station at one time, with automatic film feeding and automatic cutting of the whole board. It has the characteristics of simple operation, low power consumption, high speed, etc., and is used for secondary thermoforming processing of various thermoplastic sheets.

Application Scope:

It is mainly suitable for various thermoplastic sheets such as BOPS, PVC, HIPS, PP, PET, etc. It is widely used in the production of internal and external packaging of food, medicine, etc. and other daily-use plastic products.
Produce. Such as: food boxes, cake boxes, fast food boxes, pastry trays, supermarket trays, medical injection trays, oral liquid trays, etc.

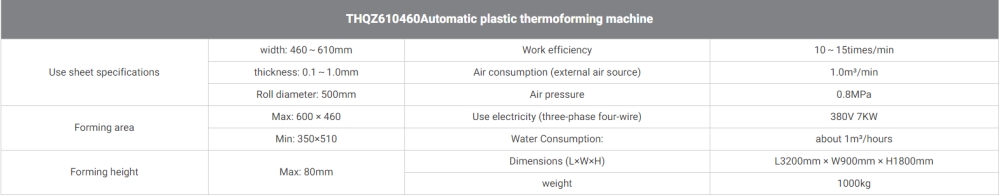

Take THQZ610460 automatic plastic air pressure thermoforming machine as an example, its performance and advantages are:

1. Low power consumption: One-hour stand-alone operation of 3KW, plus the punch and air compressor, the entire process only needs 7KW of electricity.
2. save scraps: scraps are 5mm on each side, BOPS sheet, PVC first-level new sheet, and 1000kg can be used to achieve 900kg of finished products.
3. Labor saving: one person can operate the entire production process, even punching and packaging, no need to operate the machine master.
Fourth, the machine performance is stable: different from the computer touch screen of the traditional high-speed machine, the program is complicated, the maintenance is complicated, the machine operation failure rate is small, no need to ask the master for maintenance and management, skilled workers can adjust and replace the mold by themselves. According to the product's different materials and different thicknesses Time relay and temperature controller.
5. Mould: The mould is reasonably priced and is made of imported aluminum material. Permanently unchanged. It is easy to change the mold.
6. Imported accessories: the heart of the machine-solenoid valve, brand: CKD SMC imported from Japan. Add stability to the performance of the machine.
7. Output: 24-hour output of BOPS sheet is 500kg (moon cake box), 24-hour output of PVC sheet is 1000kg (medicine tray 2ml)
